Description

SM Series are high-efficiency 100% Oil-free air compressor proven in a wide range of industries with ISO 8573-1 Class 0 certification 3D design system to eliminate design flaws and all components built All-in-one package mounted on the base frame.

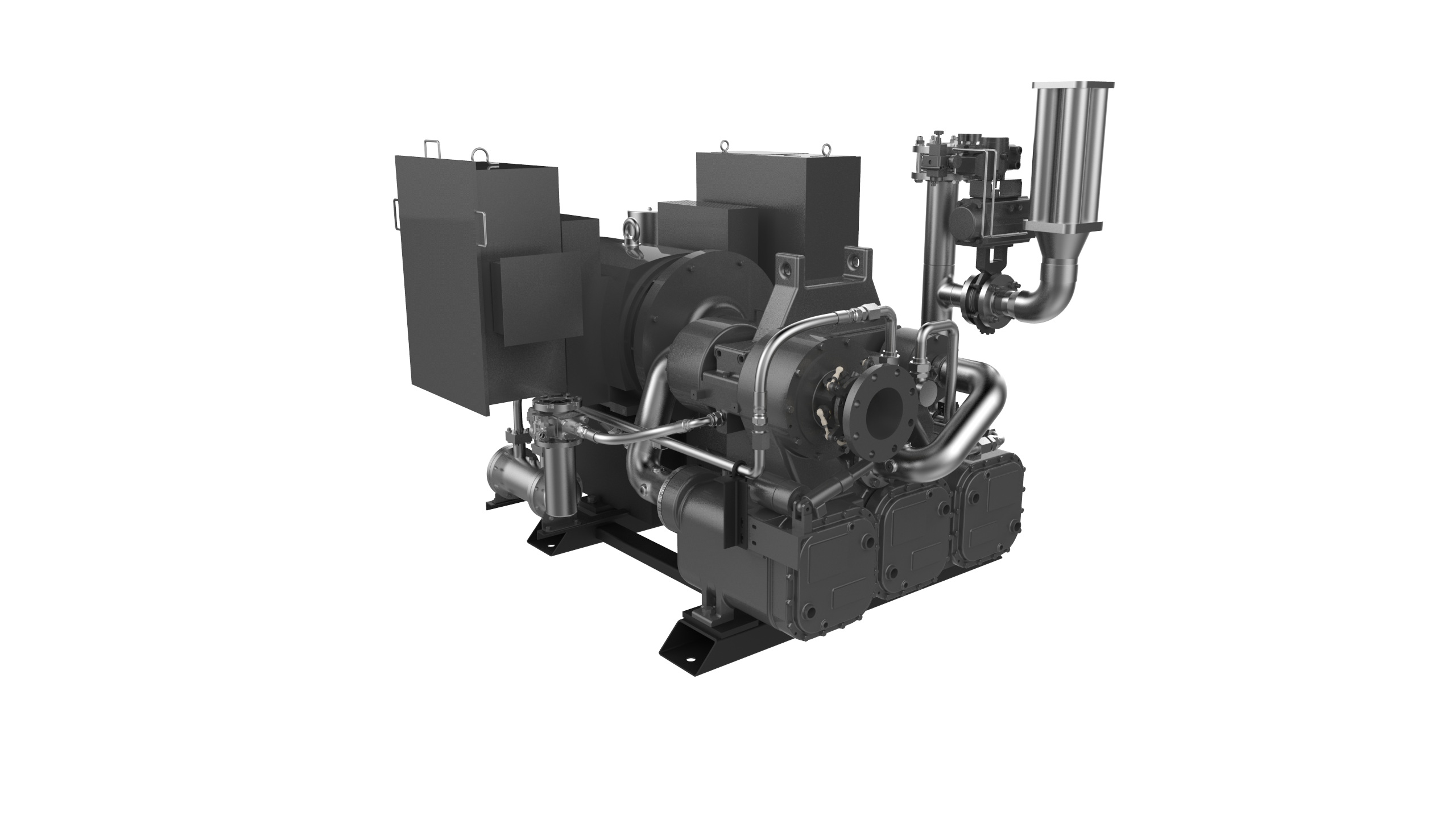

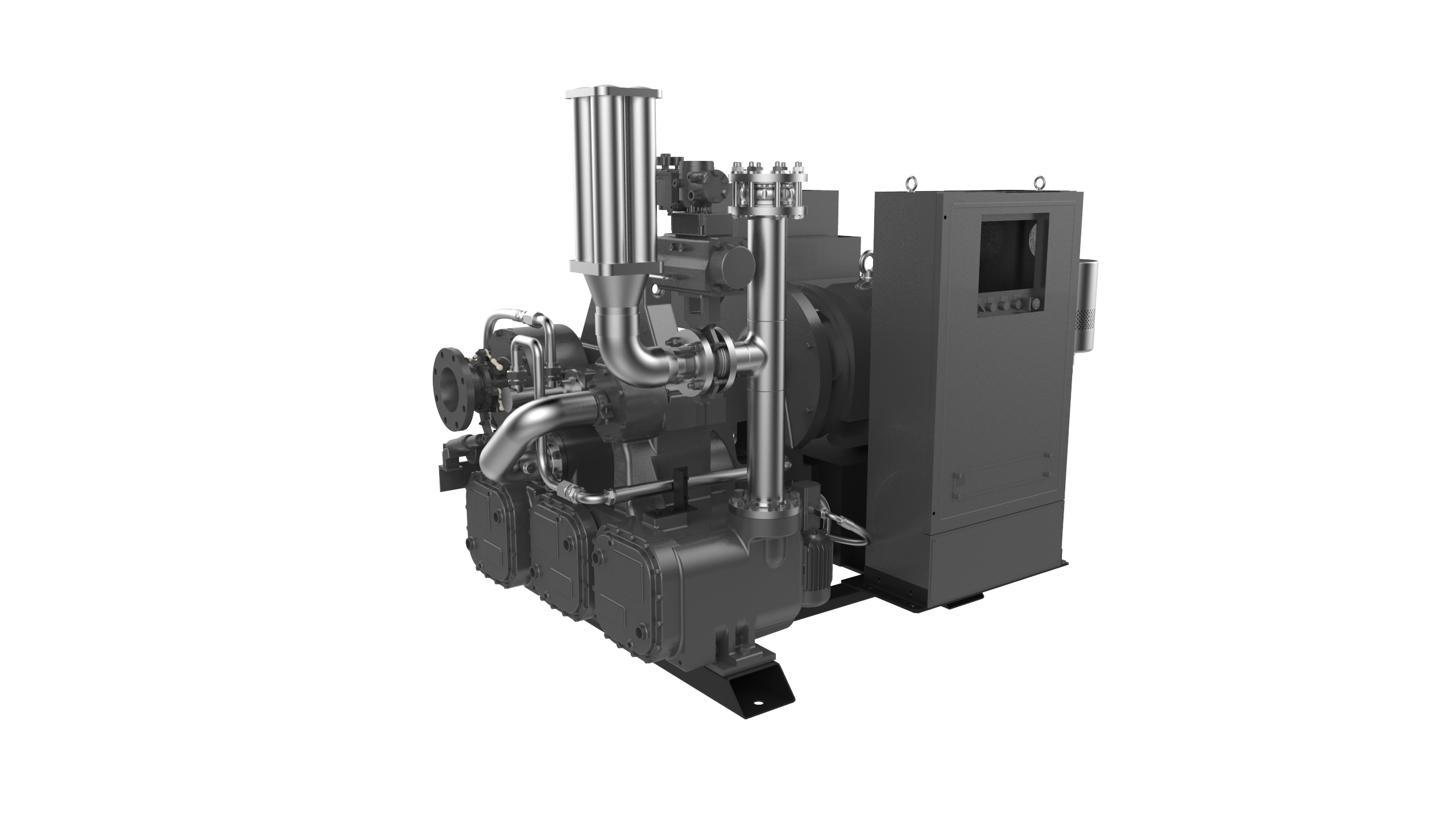

SM100 Series are Premium Oil-free air compressor with exceptional performance and optimized components. Easy installation and maintenance o Tested for 115% over-speed for reliability o Various options available to suit customer needs.

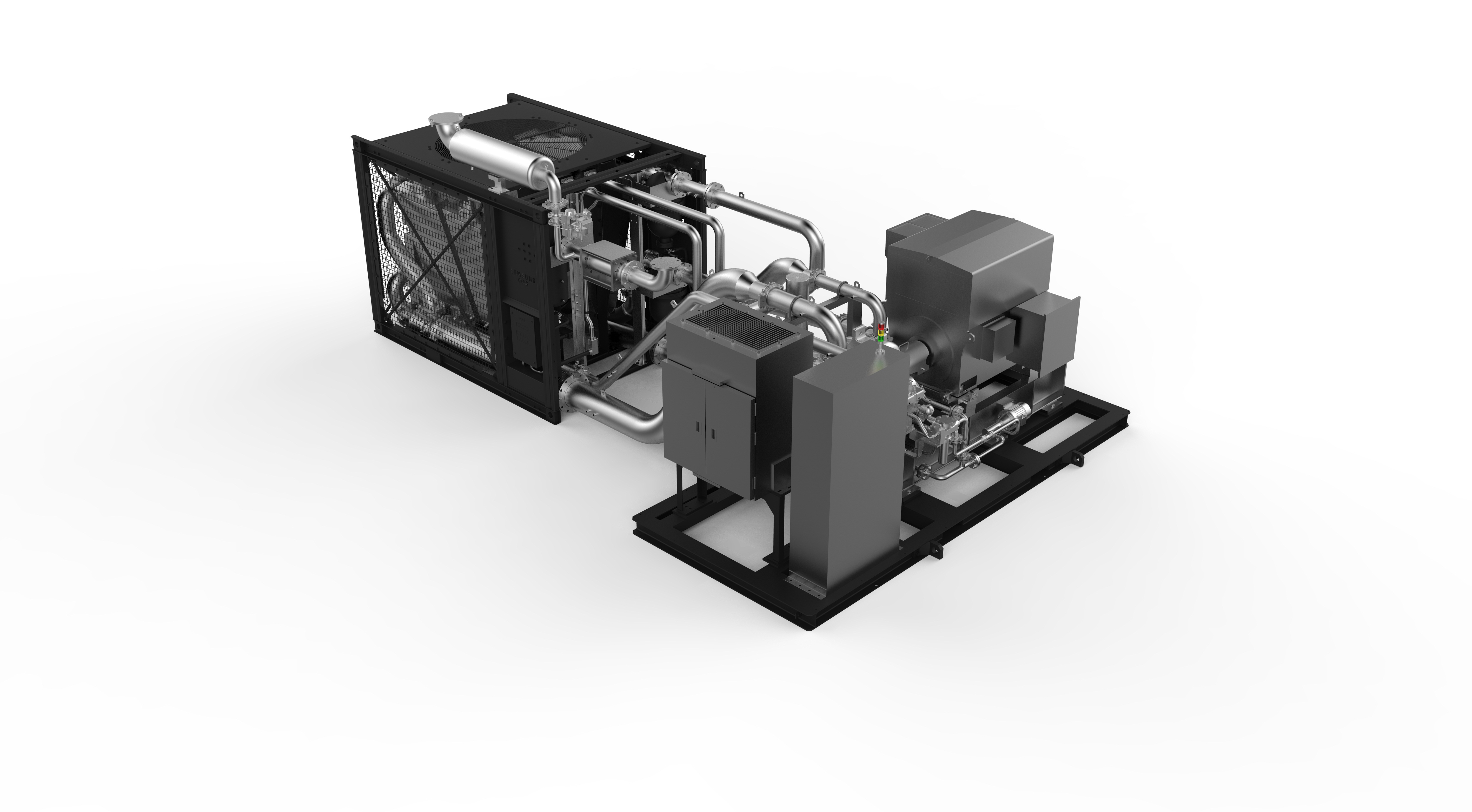

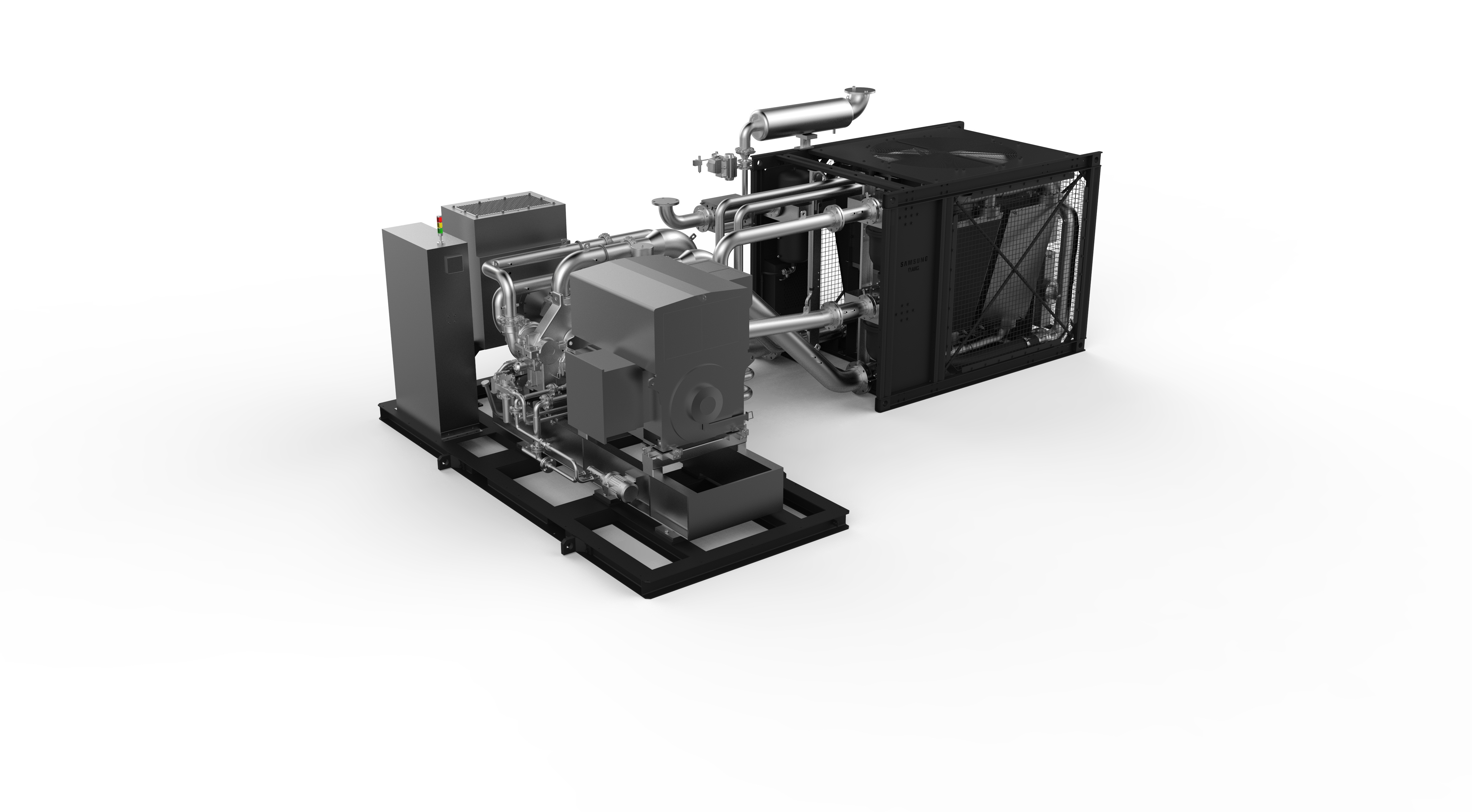

SA series are air cooled compressor with stable performance and easy maintenance structure Options available between standard or plug and play system package, with full monitoring control system and no cooling water tower needed

Range series


  Flow rate Power Discharge Pressure
Series M3/hr CFM kW HP barA PsiA

SM3000 3,300 ~ 5,300 1,950 ~ 3,100 210 ~ 680 280 ~ 910 3.5 ~ 18 50 ~ 165
SM3000 5,300 ~ 8,400 3,100 ~ 4,950 310 ~ 1,010 410 ~ 1,350 3.5 ~ 18 50 ~ 165
SM5000 8,400 ~ 15,000 4,950 ~ 8,850 490 ~ 1,540 660 ~ 1,800 3.5 ~ 18 50 ~ 165
SM6000 15,000 ~ 21,000 8,850 ~ 12,400 780 ~ 2,350 1,050 ~ 3,150 3.5 ~ 18 50 ~ 165

SM2100 1,200 ~ 3,300 700 ~ 1,950 150 ~ 335 200 ~ 450 3.5 ~ 11.4 50 ~ 165
SM3100 3,300 ~ 5,500 1,950 ~ 3,250 200 ~ 580 270 ~ 780 3.5 ~ 13 50 ~ 188
SM4100 5,500 ~ 9,000 3,250 ~ 5,300 300 ~ 930 400 ~ 1,200 3.5 ~ 13 50 ~ 188
SM5100 9,000 ~ 15,000 5,300 ~ 8,850 500 ~ 1,500 670 ~ 2,010 3.5 ~ 13 50 ~ 188
SM6100 15,000 ~ 24,500 8,800 ~ 14,400 800 ~ 2,500 1,070 ~ 3,350 3.5 ~ 13 50 ~ 188
SM7100 24,500 ~ 32,000 14,400 ~ 18,800 1,000 ~ 3,100 1,340 ~4,155 3.5 ~ 11.4 50 ~ 165





  Capacity Motor Discharge Pressure
Series M3/hr CFM kW HP barA PsiA
SA2100 1,200 ~ 2,890 700 ~ 1,680 150 ~ 260 200 ~ 350 3.5 ~ 11.4 50 ~ 165
SA3100 3,750 ~ 5,500 2,200 ~ 3,250 400 ~ 580 540 ~ 780 3.5 ~ 11 50 ~ 160

 * Flexible cooler option are available (SA3100)
